调试envoy
我们知道，envoy的配置非常复杂，直接在config_dump里去跟踪xDS的过程非常繁琐。因此istio提供了调试命令，方便查看envoy的流量处理流程。
$ istioctl proxy-config -h
比如，通过如下命令可以查看envoy的监听器：
# 查看15001的监听
$ istioctl proxy-config listener front-tomcat-v1-78cf497978-vv9wj.istio-demo --port 15001 -ojson
# virtualOutbound的监听不做请求处理，useOriginalDst: true, 直接转到原始的请求对应的监听器中
# 查看访问端口是9999的监听器
$ istioctl proxy-config listener front-tomcat-v1-78cf497978-ppwwk.istio-demo --port 9999 -ojson
...
{
"name": "0.0.0.0_9999",
"address": {
"socketAddress": {
"address": "0.0.0.0",
"portValue": 9999
}
},
"filterChains": [
{
"filterChainMatch": {
"applicationProtocols": [
"http/1.0",
"http/1.1",
"h2c"
]
},
"filters": [
{
"name": "envoy.filters.network.http_connection_manager",
"typedConfig": {
"@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager",
"statPrefix": "outbound_0.0.0.0_9999",
"rds": {
"configSource": {
"ads": {},
"resourceApiVersion": "V3"
},
"routeConfigName": "9999"
},
...
> envoy收到请求后，会转给监听器进行 处理请求，监听器先匹配address和port和socket都一致的Listener，如果没找到再找port一致，address==0.0.0.0的Listener
发现istio会为网格内的Service Port创建名为0.0.0.0_<Port>的虚拟监听器，本例中为0.0.0.0_9999。
envoy的15001端口收到请求后，直接转到了0.0.0.0_9999，进而转到了"routeConfigName": "9999"，即9999这个route中。
下面，看下route的内容：
$ istioctl pc route front-tomcat-v1-78cf497978-ppwwk.istio-demo --name 9999
NOTE: This output only contains routes loaded via RDS.
NAME DOMAINS MATCH VIRTUAL SERVICE
9999 bill-service /* vs-bill-service.istio-demo
# 发现了前面创建的virtual service
$ istioctl pc route front-tomcat-v1-78cf497978-ppwwk.istio-demo --name 9999 -ojson
[
{
"name": "9999",
"virtualHosts": [
{
"name": "allow_any",
"domains": [
"*"
],
"routes": [
{
"name": "allow_any",
"match": {
"prefix": "/"
},
"route": {
"cluster": "PassthroughCluster",
"timeout": "0s",
"maxGrpcTimeout": "0s"
}
}
],
"includeRequestAttemptCount": true
},
{
"name": "bill-service.istio-demo.svc.cluster.local:9999",
"domains": [
"bill-service.istio-demo.svc.cluster.local",
"bill-service.istio-demo.svc.cluster.local:9999",
"bill-service",
"bill-service:9999",
"bill-service.istio-demo.svc.cluster",
"bill-service.istio-demo.svc.cluster:9999",
"bill-service.istio-demo.svc",
"bill-service.istio-demo.svc:9999",
"bill-service.istio-demo",
"bill-service.istio-demo:9999",
"10.111.219.247",
"10.111.219.247:9999"
],
"routes": [
{
"name": "bill-service-route",
"match": {
"prefix": "/"
},
"route": {
"weightedClusters": {
"clusters": [
{
"name": "outbound|9999|v1|bill-service.istio-demo.svc.cluster.local",
"weight": 90
},
{
"name": "outbound|9999|v2|bill-service.istio-demo.svc.cluster.local",
"weight": 10
}
]
},
...
满足访问domains列表的会优先匹配到，我们访问的是10.111.219.247:9999，因此匹配bill-service.istio-demo.svc.cluster.local:9999这组虚拟hosts，进而使用到基于weight的集群配置。

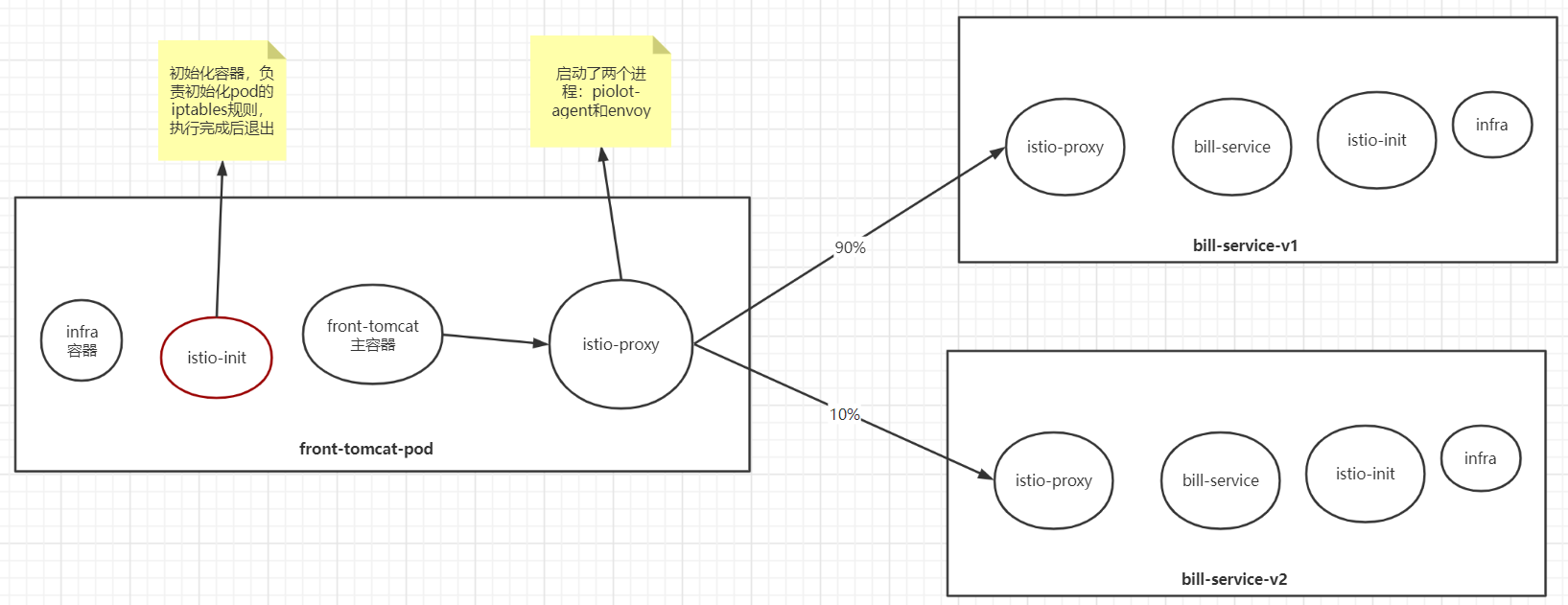

我们看到，流量按照预期的配置进行了转发：
90% -\\> outbound|9999|v1|bill-service.istio-demo.svc.cluster.local
10% -\\> outbound|9999|v2|bill-service.istio-demo.svc.cluster.local
下面，看一下cluster的具体内容：
$ istioctl pc cluster front-tomcat-v1-78cf497978-ppwwk.istio-demo --fqdn bill-service.istio-demo.svc.cluster.local -ojson
...
"name": "outbound|9999|v1|bill-service.istio-demo.svc.cluster.local",
"type": "EDS",
"edsClusterConfig": {
"edsConfig": {
"ads": {},
"resourceApiVersion": "V3"
},
"serviceName": "outbound|9999|v1|bill-service.istio-demo.svc.cluster.local"
},
...
我们发现，endpoint列表是通过eds获取的，因此，查看endpoint信息：
$ istioctl pc endpoint front-tomcat-v1-78cf497978-ppwwk.istio-demo --cluster 'outbound|9999|v1|bill-service.istio-demo.svc.cluster.local' -ojson
[
{
"name": "outbound|9999|v1|bill-service.istio-demo.svc.cluster.local",
"addedViaApi": true,
"hostStatuses": [
{
"address": {
"socketAddress": {
"address": "10.244.0.17",
"portValue": 80
}
},
...
目前为止，经过envoy的规则，流量从front-tomcat的pod中知道要发往10.244.0.7:80 这个pod地址。前面提到过，envoy不止接管出站流量，入站流量同样会接管。
下面看下流量到达bill-service-v1的pod后的处理：
先回顾前面的iptables规则，除特殊情况以外，所有的出站流量被监听在15001端口的envoy进程拦截处理，同样的，分 析bill-service-v1的iptables规则可以发现，监听在15006端口的envoy进程通过在PREROUTING链上添加规则，同样将进入pod的入站流量做了拦截。
# PREROUTING 链：用于目标地址转换（DNAT），将所有入站 TCP 流量跳转到 ISTIO_INBOUND 链上。
Chain PREROUTING (policy ACCEPT 148 packets, 8880 bytes)
pkts bytes target prot opt in out source destination
148 8880 ISTIO_INBOUND tcp -- * * 0.0.0.0/0 0.0.0.0/0
# INPUT 链：处理输入数据包，非 TCP 流量将继续 OUTPUT 链。
Chain INPUT (policy ACCEPT 148 packets, 8880 bytes)
pkts bytes target prot opt in out source destination
# ISTIO_INBOUND 链：将所有入站流量重 定向到 ISTIO_IN_REDIRECT 链上，目的地为 15090，15020，15021端口的流量除外，发送到以上两个端口的流量将返回 iptables 规则链的调用点，即 PREROUTING 链的后继 POSTROUTING。
Chain ISTIO_INBOUND (1 references)
pkts bytes target prot opt in out source destination
0 0 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:15008
0 0 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:22
0 0 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:15090
143 8580 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:15021
5 300 RETURN tcp -- * * 0.0.0.0/0 0.0.0.0/0 tcp dpt:15020
0 0 ISTIO_IN_REDIRECT tcp -- * * 0.0.0.0/0 0.0.0.0/0
# ISTIO_IN_REDIRECT 链：将所有入站流量跳转到本地的 15006 端口，至此成功的拦截了流量到sidecar中。
Chain ISTIO_IN_REDIRECT (3 references)
pkts bytes target prot opt in out source destination
0 0 REDIRECT tcp -- * * 0.0.0.0/0 0.0.0.0/0 redir ports 15006
15006端口是一个名为 virtualInbound虚拟入站监听器，
$ istioctl pc l bill-service-v1-6c95ccb747-vwt2d.istio-demo --port 15006 -ojson|grep -n15 'envoy.filters.network.http_connection_manager'
1283- "destinationPort": 80,
1284- "transportProtocol": "raw_buffer"
1285- },
1286- "filters": [
1287- {
1288- "name": "istio.metadata_exchange",
1289- "typedConfig": {
1290- "@type": "type.googleapis.com/envoy.tcp.metadataexchange.config.MetadataExchange",
1291- "protocol": "istio-peer-exchange"
1292- }
1293- },
1294- {
1295: "name": "envoy.filters.network.http_connection_manager",
1296- "typedConfig": {
1297- "@type": "type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager",
1298- "statPrefix": "inbound_0.0.0.0_80",
1299- "routeConfig": {
1300- "name": "inbound|80||",
1301- "virtualHosts": [
1302- {
1303- "name": "inbound|http|9999",
1304- "domains": [
1305- "*"
1306- ],
相比于VirtualOutbound， virtualInbound 不会再次转给别的虚拟监听器，而是直接由本监听器的filterChains处理，本例中我们可以发现本机目标地址为80的http请求，由inbound|80||这个路由处理，
查看该路由和集群的信息：
$ istioctl pc route bill-service-v1-6c95ccb747-vwt2d.istio-demo --route "inbound|80||" -ojson
"virtualHosts": [
{
"name": "inbound|http|9999",
"domains": [
"*"
],
"routes": [
{
"name": "default",
"match": {
"prefix": "/"
},
"route": {
"cluster": "inbound|80||",
"timeout": "0s",
"maxStreamDuration": {
"maxStreamDuration": "0s",
"grpcTimeoutHeaderMax": "0s"
}
},
"decorator": {
"operation": "bill-service.istio-demo.svc.cluster.local:9999/*"
}
}
]
}
]
# 转发到了同名的集群中（集群名称也叫inbound|80||）
$ istioctl pc cluster bill-service-v1-6c95ccb747-vwt2d.istio-demo --fqdn "inbound|80||" -ojson
[
{
"name": "inbound|80||",
"type": "ORIGINAL_DST",
"connectTimeout": "10s",
"lbPolicy": "CLUSTER_PROVIDED",
"circuitBreakers": {
"thresholds": [
{
"maxConnections": 4294967295,
"maxPendingRequests": 4294967295,
"maxRequests": 4294967295,
"maxRetries": 4294967295,
"trackRemaining": true
}
]
},
"cleanupInterval": "60s",
"upstreamBindConfig": {
"sourceAddress": {
"address": "127.0.0.6",
"portValue": 0
}
},
"metadata": {
"filterMetadata": {
"istio": {
"services": [
{
"host": "bill-service.istio-demo.svc.cluster.local",
"name": "bill-service",
"namespace": "istio-demo"
}
]
}
}
}
}
]
